Ozone Hole September 2017

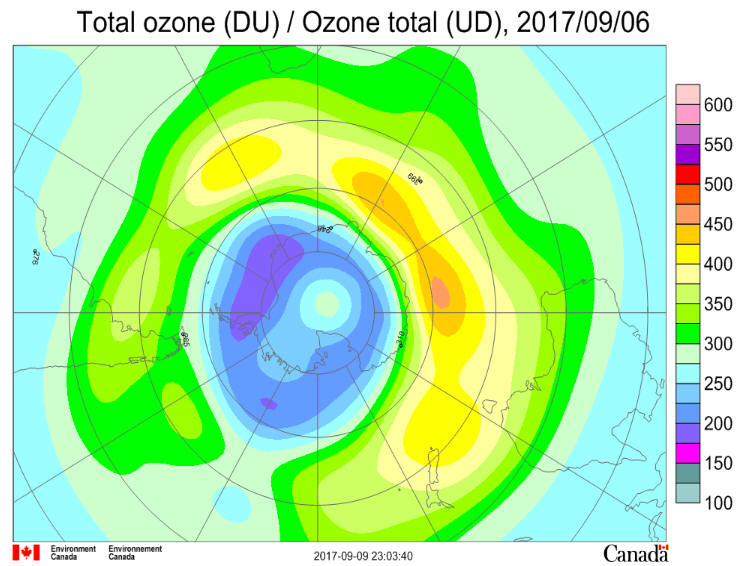

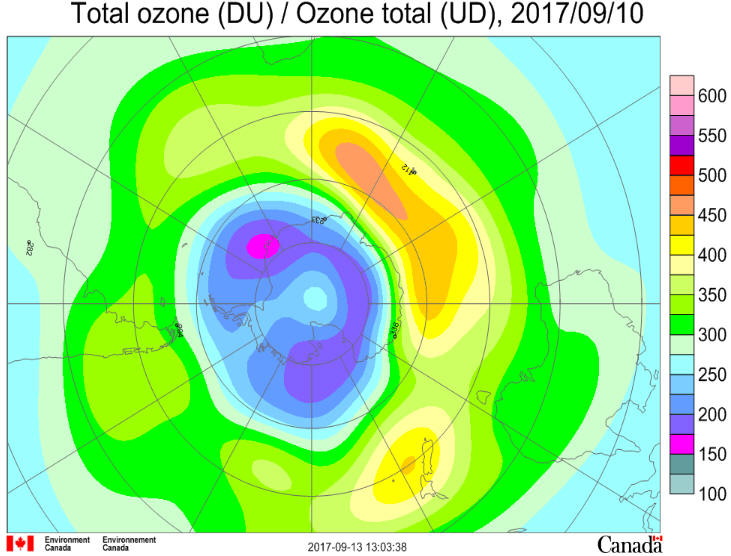

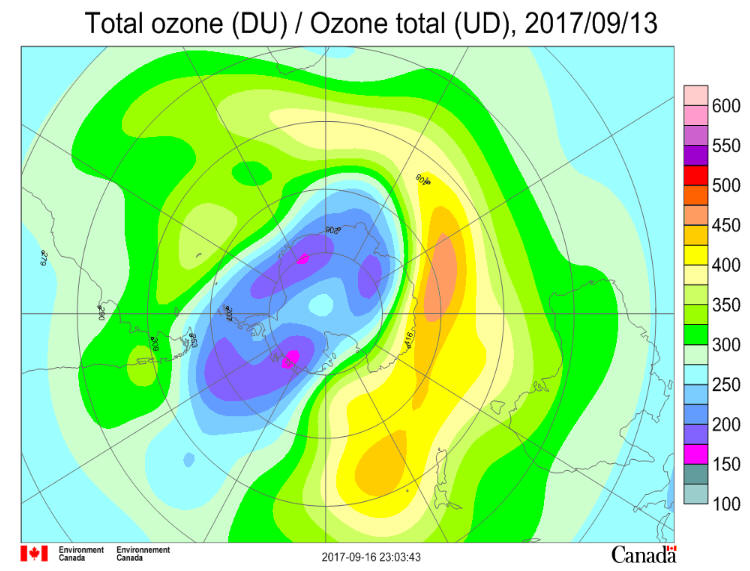

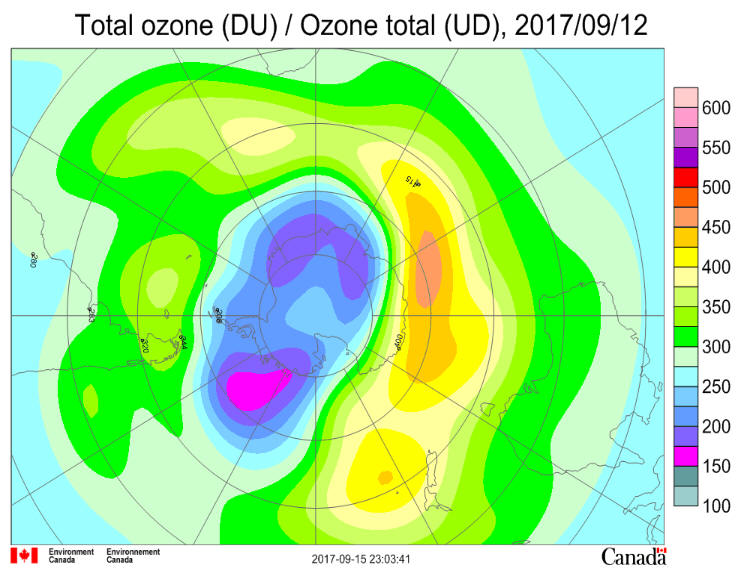

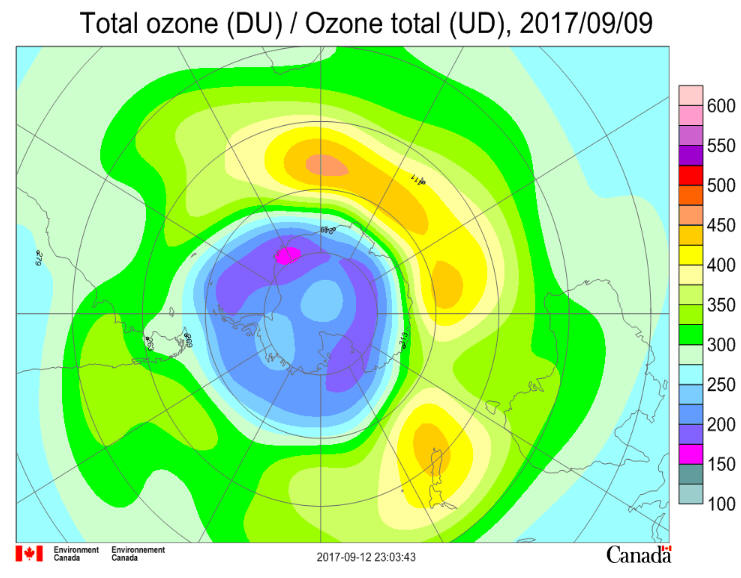

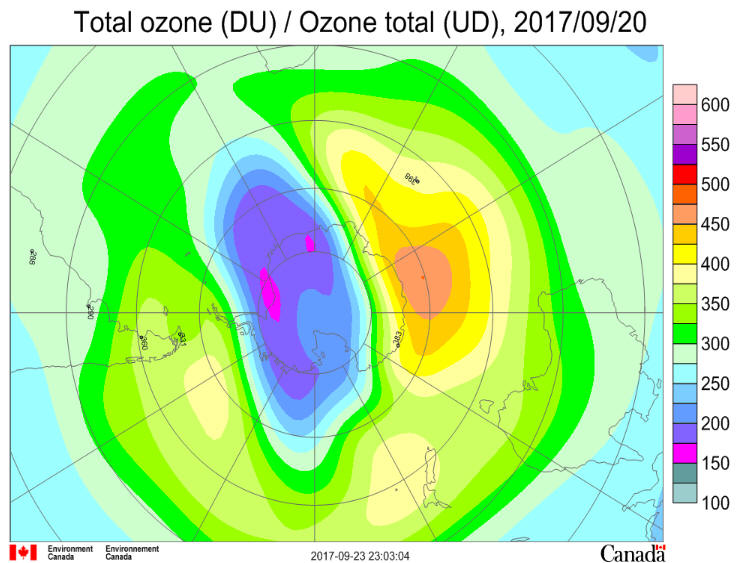

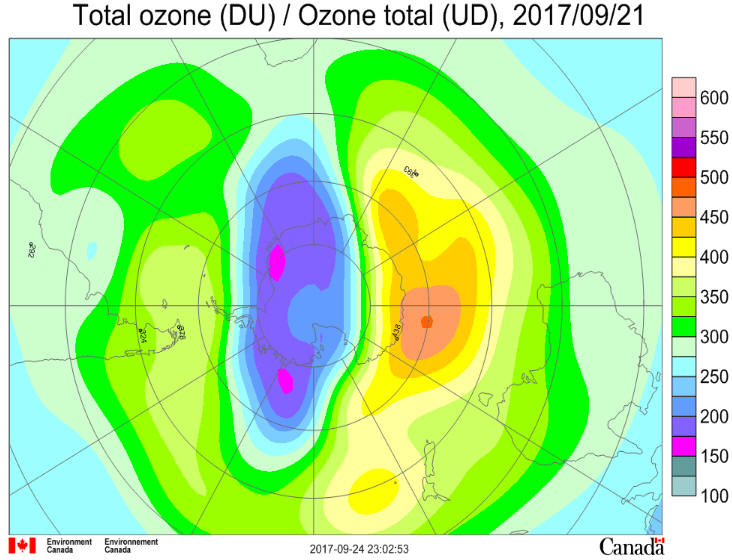

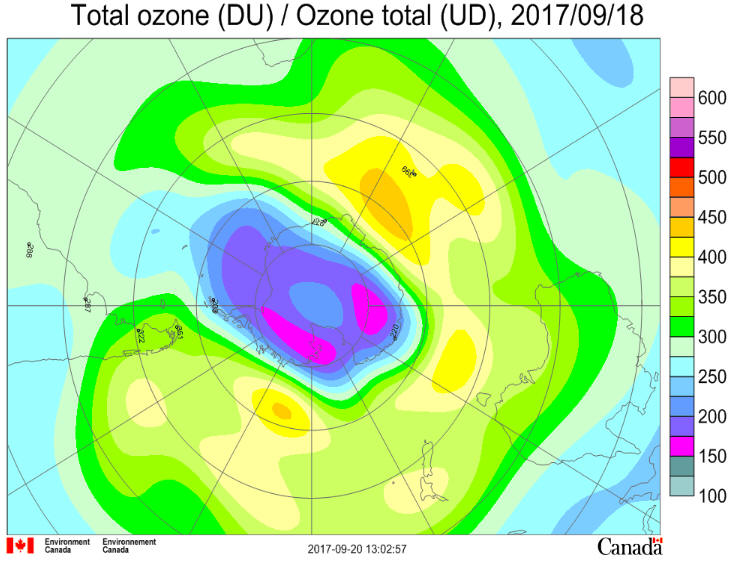

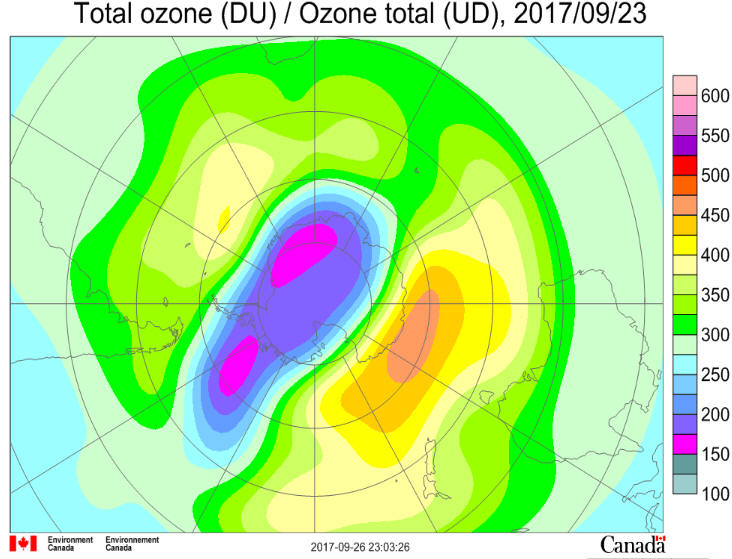

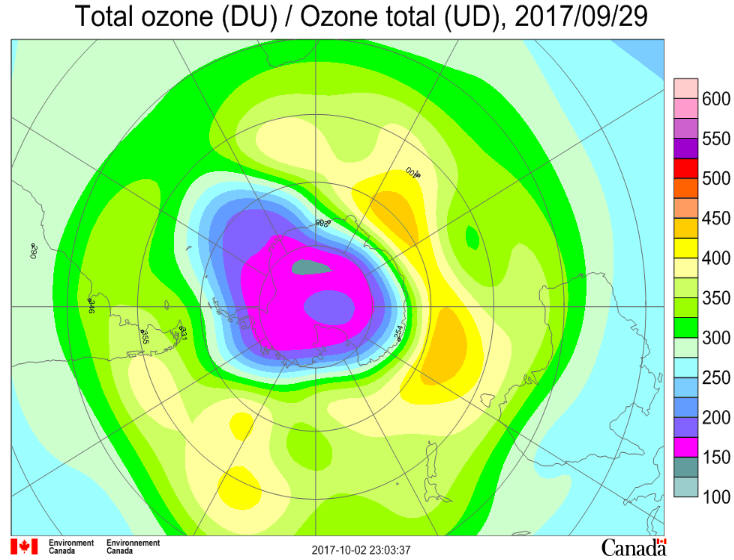

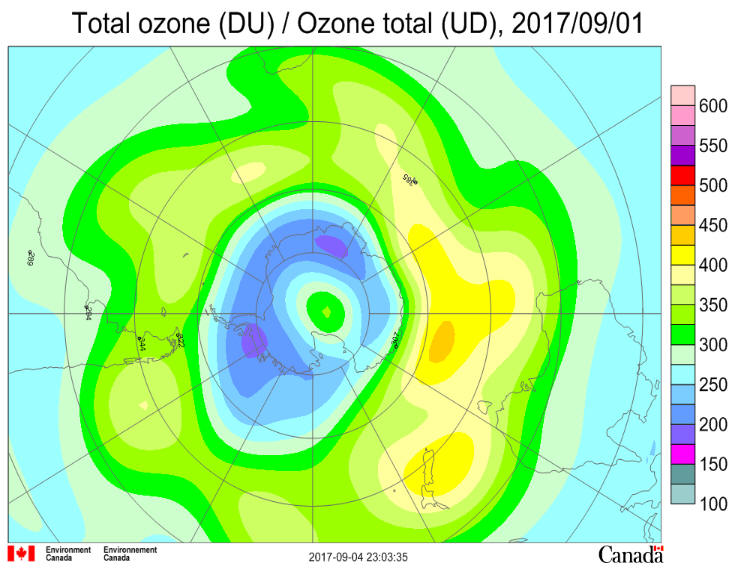

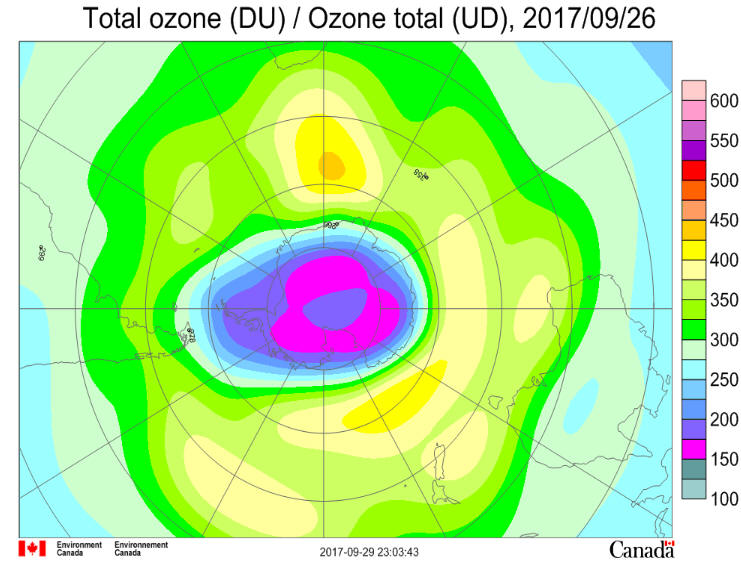

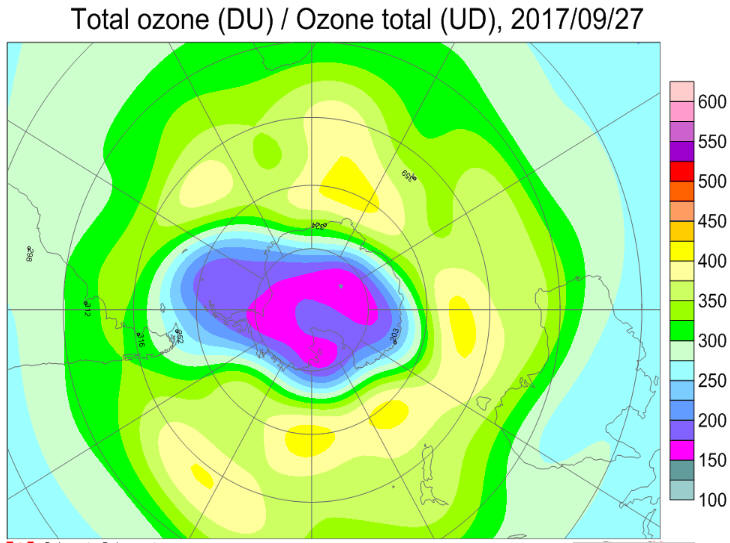

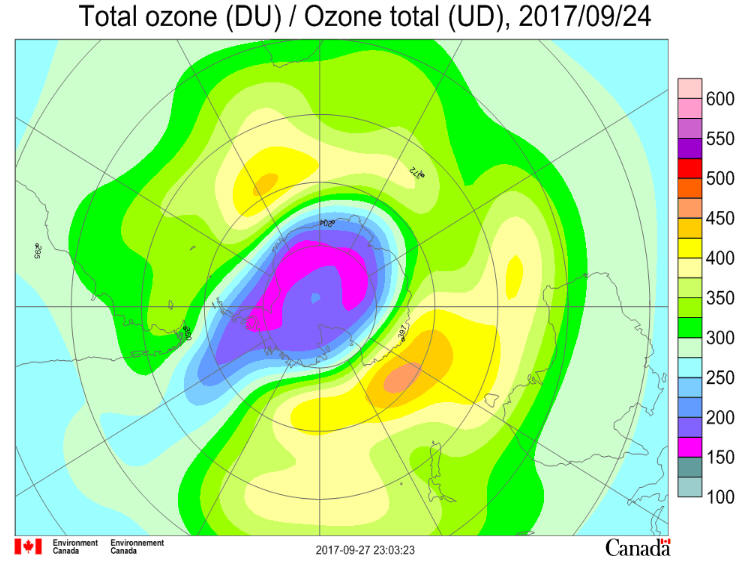

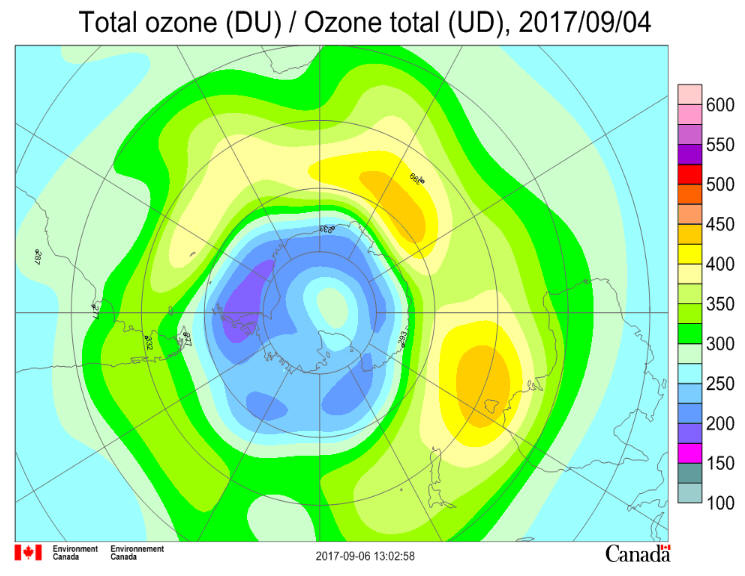

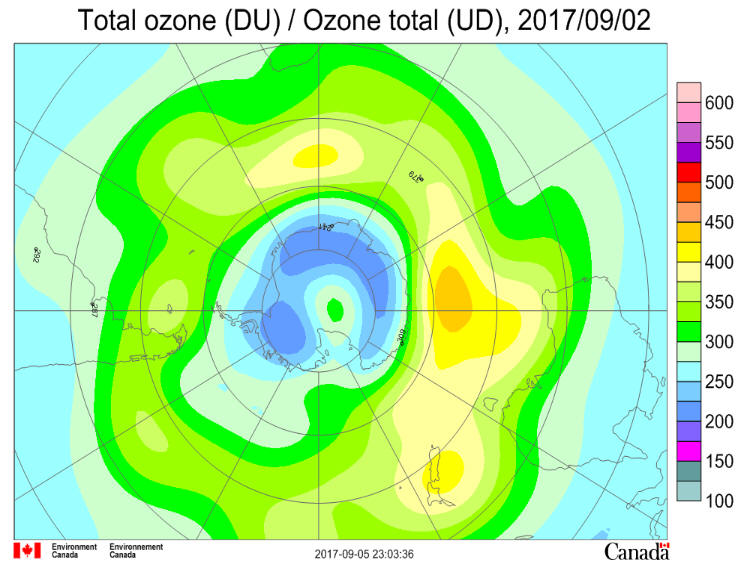

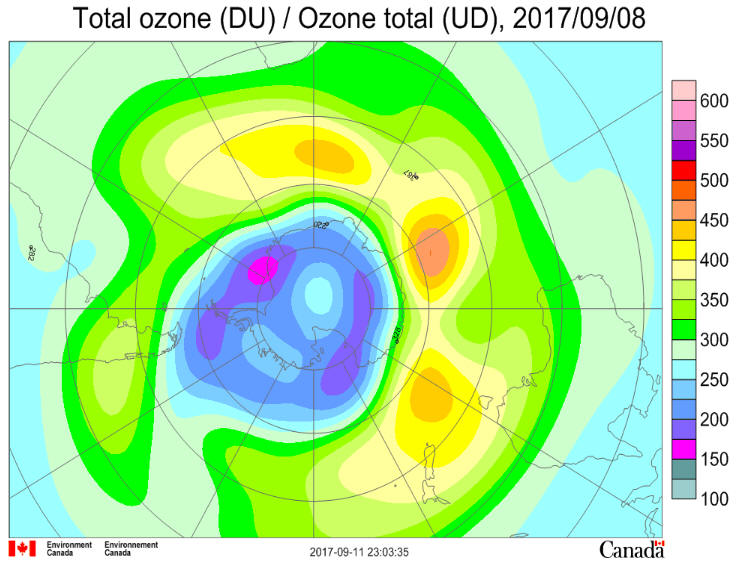

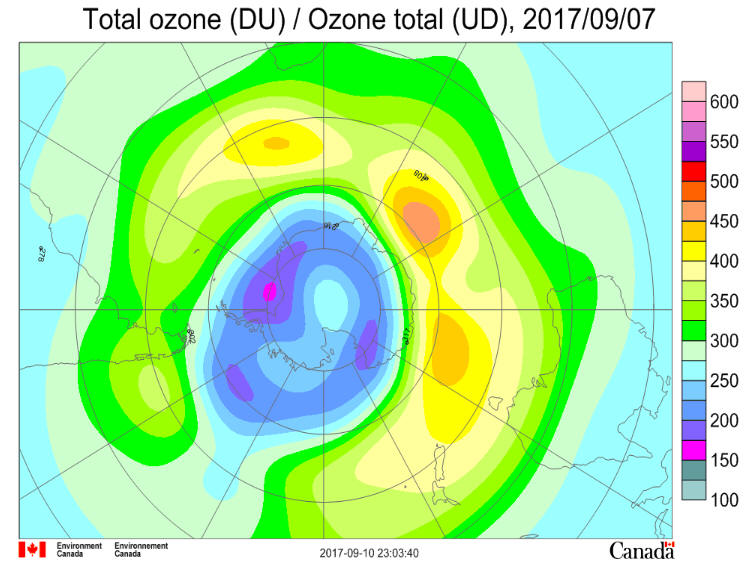

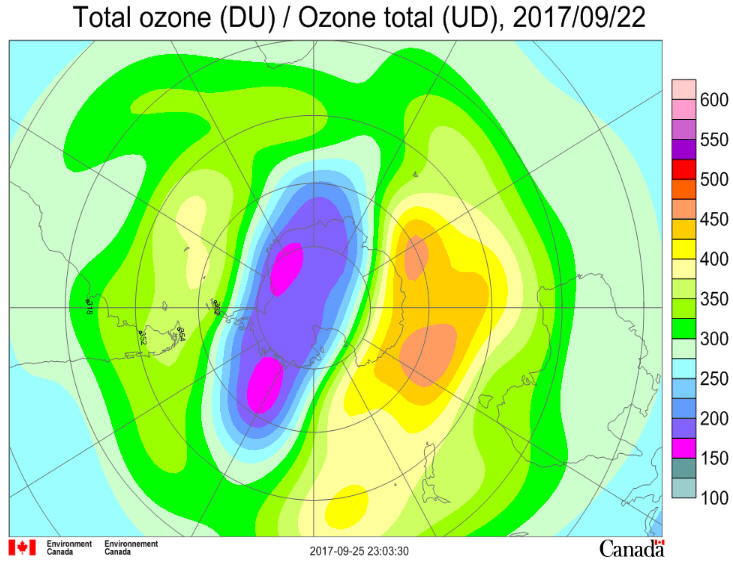

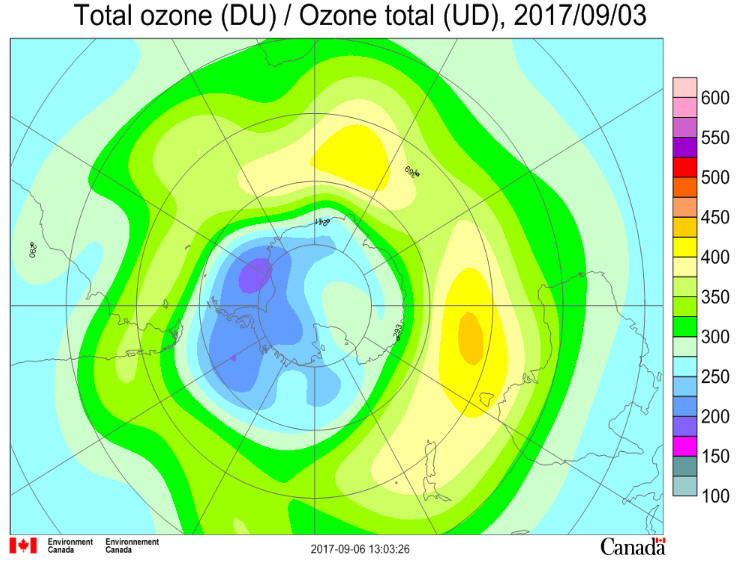

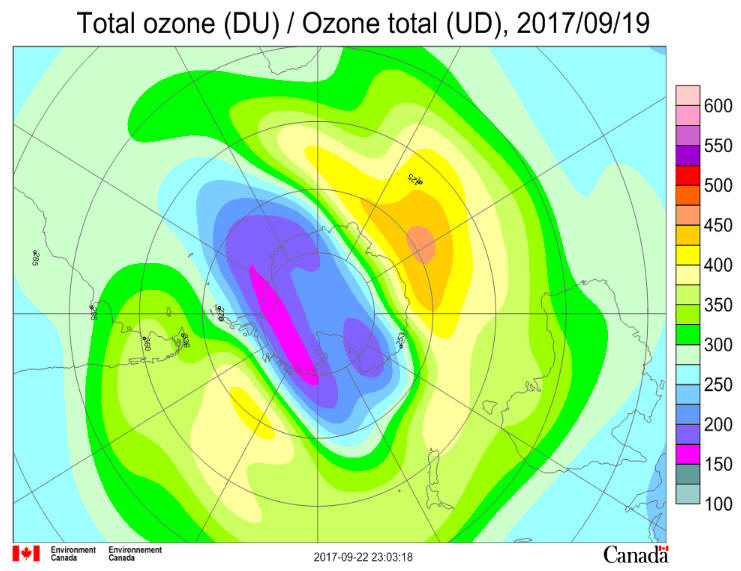

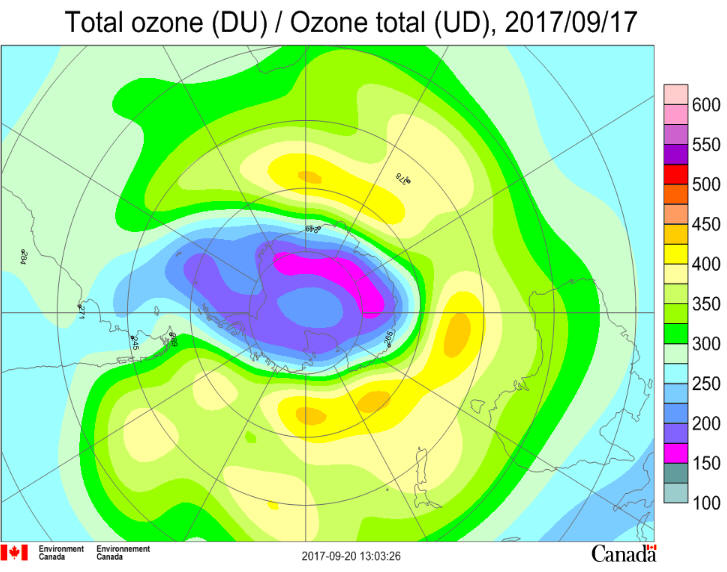

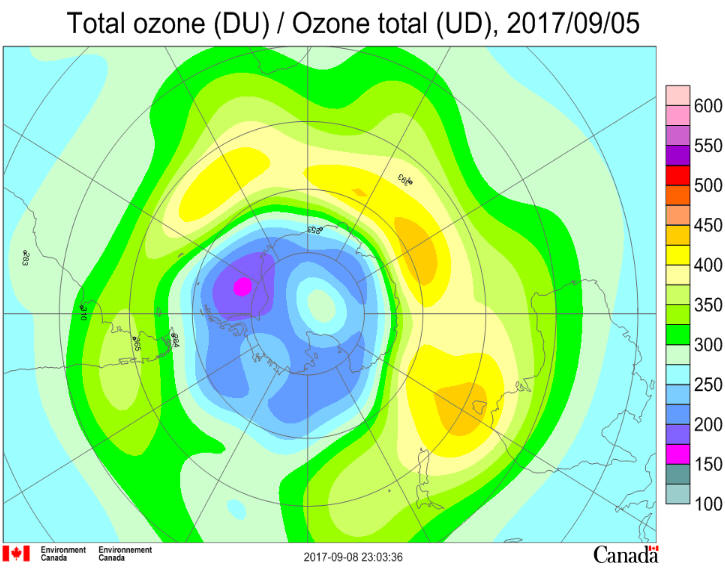

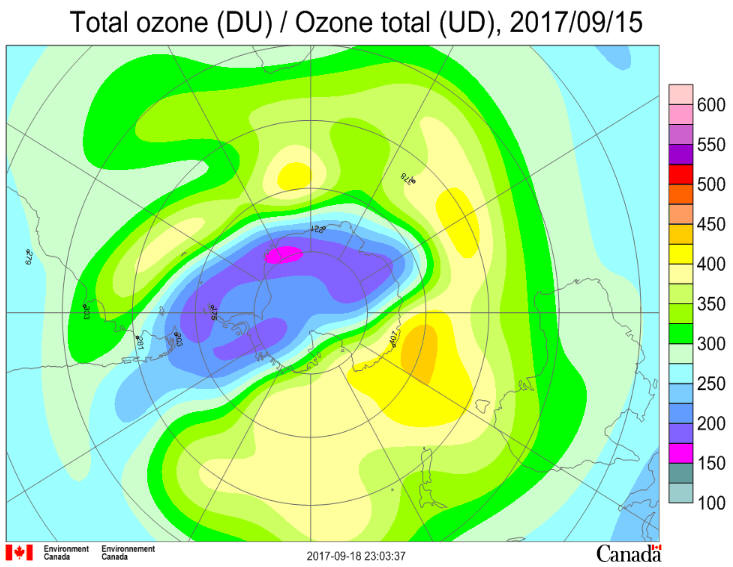

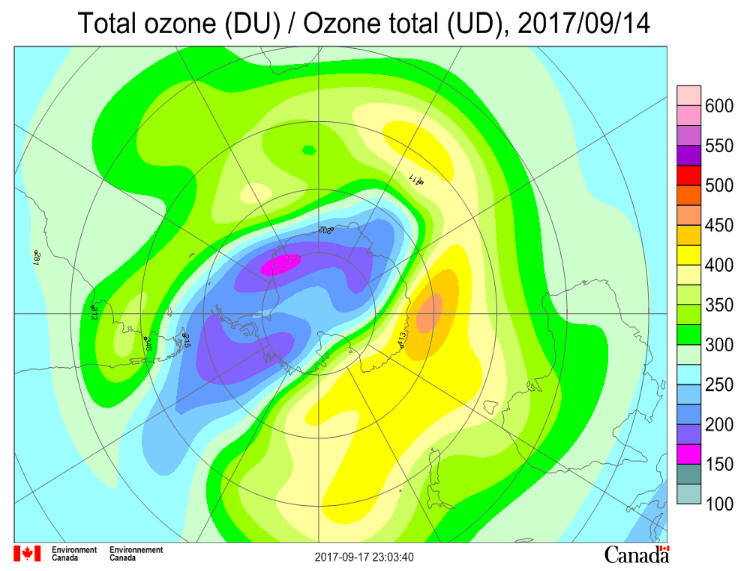

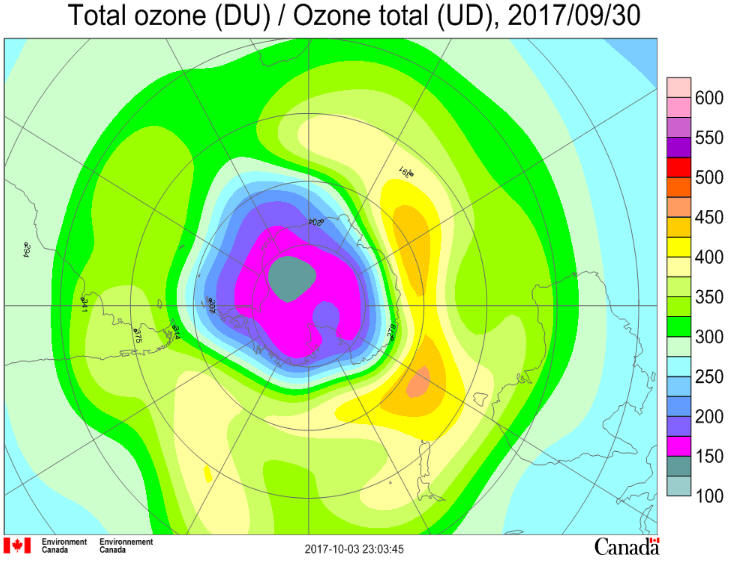

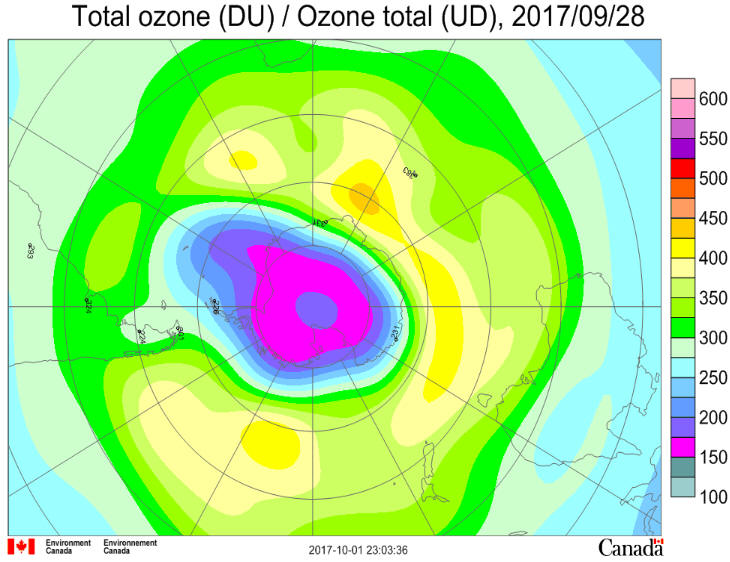

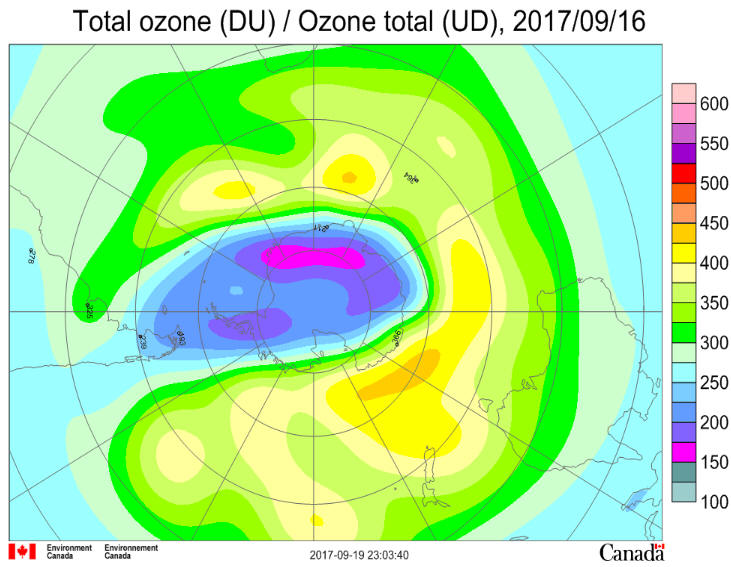

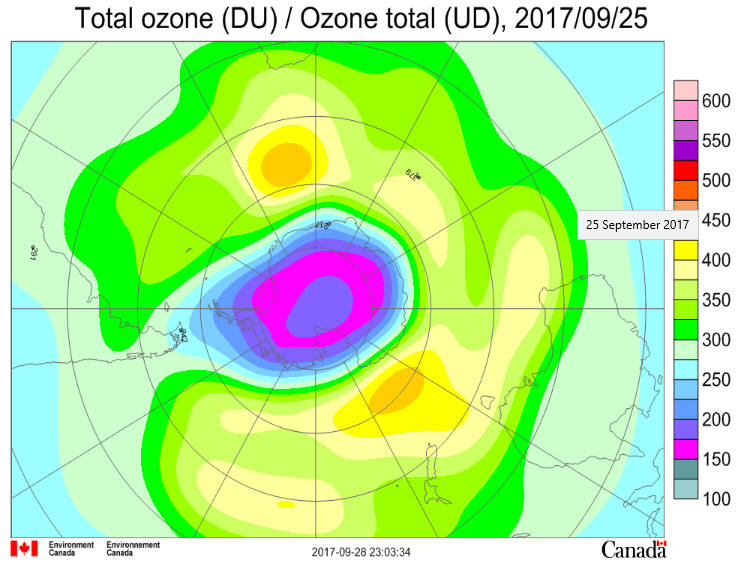

The total ozone maps are based on ground-based measurements available from the World Ozone and Ultraviolet Radiation Data Centre. Preliminary near real-time data from ground-based observations were also used for the most recent maps. Total ozone values are given in Dobson Units. The numbers represent observations taken from ground stations situated at the bottom left corner of the number. Maps of deviations represent total ozone deviations from the 1978-1988 level estimated using Total Ozone Mapping Spectrometer (TOMS) data for all areas except the Antarctic and from the pre-1980 level estimated using Dobson data over the Antarctic. Over areas with poor data coverage adjustments are made according to TOMS on Nimbus-7, Meteor-3, ADEOS and Earth Probe satellites. Over the polar night area Dobson and Brewer moon observations and/or NOAA's TIROS Operational Vertical Sounder (TOVS) satellite data are used. TOVS data are also used when the more reliable TOMS data are not available. The mapping algorithm is similar to those used by the WMO Ozone Mapping Centre. The day part of the “Start date” can specify a day (1 to 31), a mean over the entire month (1-end) or the mean of a “10-day” period during the month (1-10, 11-20 or 21-end, which might be 8 or 9 or 11 days). It must logically correspond to the unit of the “Interval”. ata compiled from The British Antarctic Study, NASA, NASA Ozone Watch, Environment Canada, UNEP, EPA and other sources as stated and credited Updated Daily-Researched By Charles Welch- This Website is a project of the The Ozone Hole Inc.
|
